Infästning, Spik, Skruv, Nit, Expander, Plugg

DIN / ISO Norm: DIN 985 Low with nylon ring, quality 8 from. M24

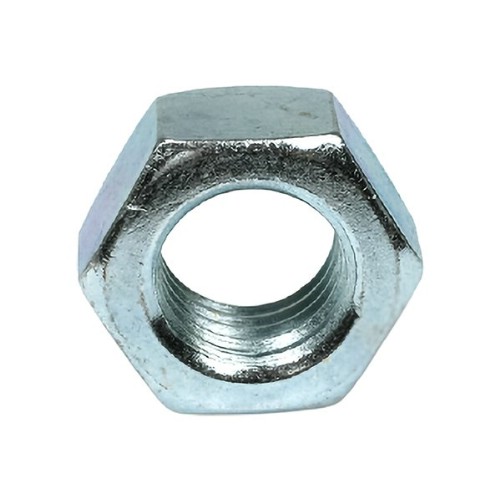

DIN / ISO Standard: DIN 934

DIN / ISO Norm: SS 70

DIN / ISO Norm: ISO 4017. Fully threaded.

Glued Nordlock washer with standard outer diameter.

DIN / ISO Norm: DIN 985. Low with nylon ring.

DIN / ISO Norm: DIN 125 A

DIN / ISO Standard: ISO 4032

401M:
Used for cross-joints in wood as a connecting element for minor deviations. With the help of bolts or expanders, the angle fittings can also be used when anchoring wood to other materials. Type M for higher loads.
Material: Galvanized sheet steel.
Nail hole: Ø 5 mm.
Bolt hole: Ø 11 mm.
401U:
Like 401M, but for lower loads.

DIN / ISO Standard: DIN 9021

Expander nail for quick anchoring. Suitable for smaller subordinate fixings indoors. The fastener is held in place by a collar. Suitable for concrete > B25, solid stone and pressure-resistant natural stone.
Material: Spring steel.
Surface treatment: Electro-galvanized.

DIN / ISO Standard: DIN 934

DIN / ISO Norm: SS 70

Nylon plug with a combination of two materials that create three functions. Two different types of nylon that add greater expansion volume and higher load values ??in both hard materials and hollow stone materials. Smart and self-activating functions (expansion, folding, tying) depending on the material. Shorter plug length allows for faster assembly. The red expansion wings ensure the expansion and bring additional security in combination with the main part of the plug. Equipped with a thin collar that prevents the plug from going into the borehole, but still allows through-hole mounting.

DIN / ISO Standard: ISO 4032

Suitable for interior wall and ceiling mounting where a flat head is required.
Design: Low lumpy tile head, height 2.5 mm. For steel rule max 0.9 mm and wooden rule.

Torx wood screw with countersunk head for outdoor use. Cutting drill tip and slanted, longitudinal cuts between the threads. For outdoor use. CE 14592.
*CE 14592 does not apply to these dimensions.
Material: Case hardened steel.
Surface treatment: Zincotech Au, type approved for corrosivity class C4, no 0168/07.
** Bucket
*** Plastic box
**** With long thread that improves insertion into end wood.

Mounting screw for wood, with large washer head. 4Cut tip that prevents cracking. For indoor and outdoor use.
Bit: Torx T-Star Plus.
Material: Case-hardened steel.
Surface treatment: Wirox A9J (approved for outdoor use under roof).

Träskruv T-star 10x320 Wirox

Anchor nail with round comb-threaded shaft and flat countersunk head. Mainly used in combination with construction fittings. Supplied in a can.
Material: Carbon steel.
Surface treatment: Electro-galvanized.

Bright galvanized.

Flat washer bright galvanized. Quality HV 200. DIN 125A, ISO 7089.

Suitable for interior wall and ceiling mounting where a flat head is required.
Version: Low lumpy tile head. 120° spiral drill tip for steel rule max 2.5 mm.

Stainless blind rivet with lumpy head and stainless steel pin (A2).

DIN / ISO Norm: DIN 6921
H = fully threaded.

DIN / ISO Norm: DIN 933. Fully threaded.

Wood screw with countersunk Torx head. Suitable for fastening load-bearing parts in most wooden constructions. Designed to reduce cracking. High-performance wax coating that reduces resistance when screwing in and allows smooth assembly. For indoor use. ETA-approved.
Materials: Case-hardened steel.
Surface treatment: Bright galvanized, corrosivity class C1.

Beam shoe for connecting beams in the same plane and when connecting between column and beam. The height of the beam shoe must correspond to at least 2/3 of the height of the secondary beam. Minimum 20 mm from top of beam to nail hole. Fitting width may exceed beam width by a maximum of 3 mm. The beam shoe is equipped with both nail and bolt holes and can be mounted in wood, concrete, lightweight concrete, brick or steel. Anchor nails 4.0 or anchor screws 4.8 are used for fastening. M8 or M10 bolts are used for the bolt holes.
Materials: Hot-dip galvanized steel plate S250GD+z275.
Nail holes: Ø 5 mm.
Bolt holes: Ø 9 mm and Ø 11 mm.

DIN / ISO Standard: ISO 4014

ISO 4032

DIN / ISO Norm: DIN 6926/ISO 7043. All-metallic with nylon ring.

DIN / ISO Standard: DIN 9021

10,5X20X2,0 FZB

DIN / ISO Norm: DIN 933. Fully threaded.

DIN / ISO Norm: DIN 125 A. Acid resistant.

Wood construction screw with reduced Torx head. Joins the timber in a single work step. Power thread that pulls the wood together and a torpedo tip that grips directly. Two Pondus wood screws replace a construction fitting and 16 screws. Recessed head without grooves to avoid tearing up sharp wood chips. For outdoor use. Each package is delivered with 1 screw bit. ETA-approved.
Materials: Hardened steel, strength class 9.8.
Surface treatment: KTCO coating.
Corrosivity class: C4.

Assembly and construction screw with cylinder head and Torx grip. Double thread for effective assembly and joining of wooden constructions. For indoor use.
Material: Case-hardened steel.
Surface treatment: Bright galvanized.
Corrosivity class: C1.

DIN / ISO Standard: DIN 7981C. With lumpy head. Phillips (PH).

DIN / ISO Standard: DIN 931.

Comb-threaded anchor nail for anchoring construction fittings and nail plates, outdoors.
Material: Carbon steel
Surface treatment: Hot-dip galvanized
Head: Flat , recessed
