Fläktassisterande andningsskydd

Face shield designed and developed based on market requirements and needs. Adapted for use together with fan unit SR 500, SR 500 EX or SR 700. It can also be used together with compressed air attachment SR 507. Robust screen with fold-up visor that gives the user comfortable and safe breathing and eye protection. Protects the breathing zone and the head. Impact- and scratch-resistant PC sight glass. Adjustable head position. Air deflector for optimal comfort. Supplied air keeps the visor fog-free. Replaceable flexible breathing tube. Standard attachment for earmuffs. Exchangeable protective foils are available as accessories. PC visor and visor frame withstand high speed particles 120 m/s at extreme temperatures, liquid splash and molten metal splash. Equipped with exhalation valve. Made of materials that allow use in harsh environments.
Contents: Face shield, breathing tube, protective film with clips, cleaning cloth and user manual.
Use temperature: -10°C - +55°C
Assigned protection factor: 100 (3A, 3B), 200 (TH3)
Nominal protection factor: 200 (3A, 3B), 500 (TH3)
Weight: 860 g

Approved/Certified according to:
EN 12941:1998 + A2:2008
EN 14594:2005
EN 166

Sundström SR 500 + SR 570 är ett paket med fläkten SR 500 och skärmen SR 570. Sundström SR 500 är en lättmanövrerad batteridriven fläkt. Tillsammans med filter och en godkänd ansiktsdel ingår fläkten i Sundströms fläktassisterade andningsskyddssystem. SR 500 kan användas som alternativ till filterskydd i alla situationer där sådana rekommenderas. Detta gäller i synnerhet vid tunga, varma eller långvariga arbeten. Fläkten förses med filter och den filtrerade luften matas via en andningsslang till ansiktsdelen. Övertrycket som då bildas förhindrar att omgivande föroreningar tränger in. Sundström SR 570 är en robust skärm med uppfällbart visir som ger användaren ett komfortabelt och säkert andnings- och ögonskydd. Skärmen är försedd med infästning för hörselkåpor. Ett brett sortiment av tillbehör ger användaren möjlighet att anpassa skärmen efter sin arbetsmiljö. Skärmen är tillverkad i material som tillåter användning i tuffa miljöer.

(HTML text not available)

Battery-powered fan unit that, together with filters and an approved facepiece, is part of Sundström's fan-assisted breathing protection system. Can be used as an alternative to filter protection in all situations where such is recommended. This applies in particular to heavy, hot or long-term work. The fan is equipped with a filter and the filtered air is fed via a breathing tube to the face part. The overpressure that then forms prevents the penetration of surrounding contaminants. Powered by the included 14.4 V Li-Ion battery, which provides an operating time of up to 7 h. Charging time approx. 2 h. Equipped with two filters/filter combinations. Start, stop and selection of operating mode are managed with the same operating button. Display with symbols for different operating conditions. Alarm with vibrations and sound/light signals in case of obstructions in the air flow. Automatic control of air flow with compensation for air pressure and temperature. The enclosure protection of the electronics is approved according to IP67. The fan unit can be used together with hoods SR 520, SR 530, SR 561, SR 562, SR 601, SR 602, screen SR 570, welding visor SR 570/SR 574 half mask SR 900, full mask SR 200, welding visor SR 592, helmet with visor SR 580 and welding visor/helmet with visor SR 584/SR 580.
Contents: Fan SR 500, 1 standard battery 14.4 V Li-Ion 2.25 Ah, battery charger SR 513, belt SR 508, 2 pcs particle filter P3R SR 510, 2 pcs filter adapters SR 511, 2 pcs pre-filter SR 221, 2 pcs pre-filter holder SR 512, flow meter SR 356, cleaning napkin SR 5226, 3 pcs plugs for fan and user manual.
Air flow: 175 l/min
Using temperature: -10°C - +55°C
Assigned protection factor: 200 (TH3) together with SR 520, 530, 561, 562, 570, 574, 580, 584, 592, 601, 602, 604
Assigned protection factor: 1000 (TM3) together with SR 200, 900
Nominal protection factor: 500 (TH3) together with SR 520, 530, 561, 562, 570, 574, 580, 584, 592, 601, 602, 604
Nominal protection factor: 2000 (TM3) together with SR 200, 900
Weight: 1650 g

Approved/Certified according to:
EN 12941:1998 + A2:2008
EN 12942:1998 + A2:2008

Fläkt Duraflow, Startpaket - Inkl. batteri,bälte,laddare. Batteridriven fläkt med automatisk reglering av luftmängden.

Fläkt SC-modellen är intelligent och lättanvänd, och erbjuder ett antal avancerade utökningar av det ursprungliga Proflowkonceptet. Automatisk luftflödesreglering säkerställer enhetlig och balanserad tillförsel av andningsluft under hela arbetspasset, och en mikroprocessorbaserad dataloggningsfunktion sörjer för tillförlitligt underhåll.

Face shield with polycarbonate visor and hard head top. Folding visor with special coating that is impact and scratch resistant while also being chemical resistant. Headband with steering wheel adjustment for high comfort, low weight. Comfortable face seal against dust, spray fumes and chemicals. Increased control and comfort with valve so the user can direct the airflow inside the head cover. The design of the visor provides excellent side and downward vision with good optical clarity. Prepared for use with Versaflo fan assembly. Meets the highest performance requirements (TH3) for this type of product when used with specific Versaflo fan units.

Battery-powered fan unit that protects against solid particles. With 2 flow rates, 185 l/min and 205 l/min. Easy-to-use, versatile respirator for environments that require particle filtration. Easy to adjust and maintain. Highly efficient filter that captures dangerous dust, mist and smoke and can be used for troublesome gases and vapours. Li-Ion battery with charging indicator. Slim design and low weight make it excellent for use in tight spaces. The polluting air is drawn in through a filter and purified. The air is then brought through a breathing tube up to the top of the head. Acoustic and visual alarm for low air flow or low battery level. A window on the fan provides quick identification of which filter is being used. IP53.
Conforms to SS-EN12941
Contents:
Starter package TR-315E+: Fan unit TR-302E+, particle filter, pre-filter, standard belt, flow indicator, high capacity battery, battery charger incl. charging plate and self-adjusting breathing air hose.
Fan unit TR-302E+: Fan unit with filter cap and air flow indicator.

Battery-powered fan unit that protects against particles, gases or vapors, or against a combination of these depending on the type of filter used. Low-profile construction means that the center of gravity is kept close to the back which provides high comfort. Fan with selectable 3-stage solution for the air flow. Easily adjusted with a button with two-step function. The air flow is set between 190-205 l/min. Easy to clean. Acoustic and visual alarm for low air flow or low battery level. Many filter combinations, in front of the filter both pre-filter and spark arrester can be mounted. In normal use the fan is IP53 sealed, with cleaning plugs fitted the enclosure protection is IP67.
Conforms to Cat III, EN12941
Contents:
Starter Kit TR-619E: Fan unit TR-602E, A2P filter, filter cover, 10 pcs pre-filter, 2 pcs spark arrester, Easy Clean belt, high capacity battery, battery charger with one station, airflow indicator and self-adjusting breathing air hose.
Fan unit TR-602E: Fan unit, 2 spark arrestors, and airflow indicator.

Fresh air unit used together with Esab's welding helmets. Robust construction makes it suitable for all heavy duty welding applications. Provides proper protection against welding fumes and dust when welding, chiseling and grinding. Adjustable airflow from 170 l/min to 220 l/min to suit the environment and application. The airflow is indicated by the LED at the top of the unit. Audible and visual alarms for clogged filter and low battery level, giving the welder extra safety. Powerful Li-Ion battery pack that provides up to 8 h of use at air flow 220 l/min. Easy filter change.
Standard equipment: Fan unit, battery, intelligent charger, P3 filter, pre-filter, waist belt, air hose and Proban hose cover.
Dimensions (LxWxH):< /b> 185x100x160 mm.
Weight: 1000 g.
Tested and certified according to CE-EN12941 to be used together with < b>welding helmets Sentinel A50 (TH2), Warrior Tech (TH3), G50 (TH3), G40 (TH3), G30 (TH3) and F20 (TH2).

Sweatband for face shield SR 570.

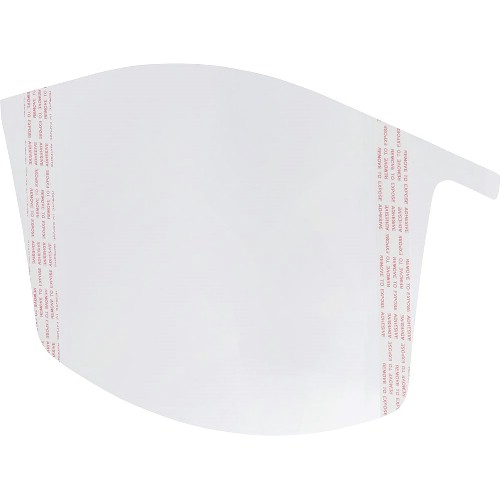

Protective foil for Sundström's face shield SR 540. 12-pack.

Carrying harness for fan unit SR 500 and SR 700. The harness gives the user a number of possibilities to carry the fan with the greatest possible comfort during different types of work. The fan can be worn at the back or between the shoulder blades. The back plate can be adjusted in 3 positions according to the height of the user. Made of polyester and TPE.

Breathing hose that fits Sundström's face shields SR 540 and SR 540 EX. Made of polyurethane and polyamide. Length 0.9 m.
